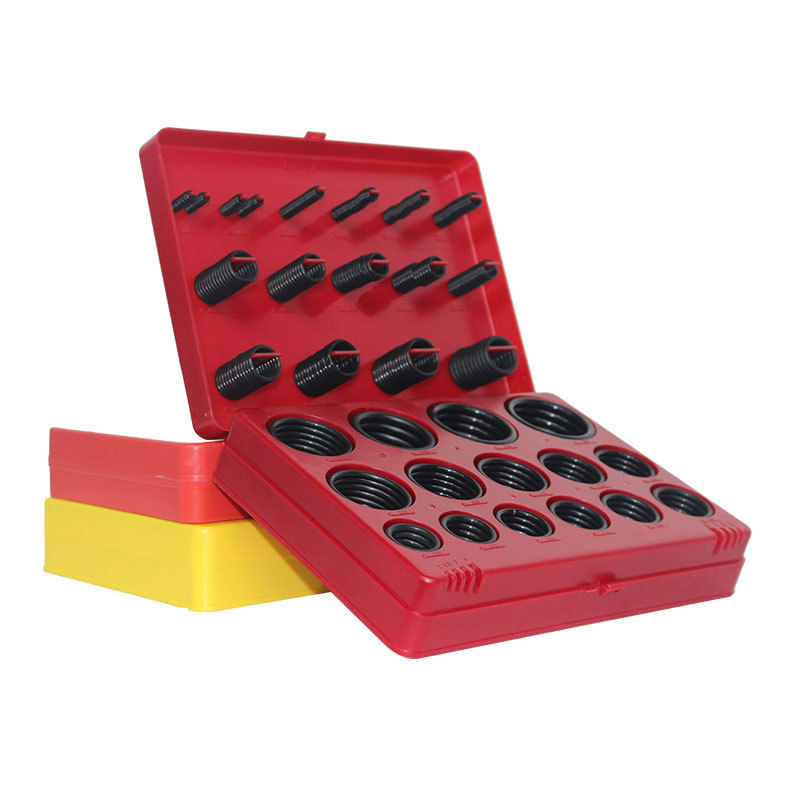

STTM O Ring Kit Box-G AS568 Standard 30 Dimensions 382 Pieces

    Model: Box-G
    MOQ: 200 Pcs
    Payment: <1000 usd, 100% in advance>=1000 usd, 30% in advance,70% before shipmen
    Delivery Time: 10 to 60 days according to quantity
    Certification: ISO9001, IATF16949, FDA, RoHs, Reach
    Category:
      Basic Info
      Item Description
      Size AS 568 standard
      Color Commonly used black, also can be other color
      Hardness Duro 70 or 90 Shore A
      Hardness Tolerance +/-5 Shore A
      Temperature Range -30 ℃ to 100 ℃
      Product Description
      Advantages:



      1、Excellent Abrasion-Resistance,Good Rebound Resistance

      2、Good Tensile Strength and Elongation

      3、Excellent Animal and Vegetable Oil Resistance

      4、Good Oil and Fuel Resistance

      5、Good Water Resistance



      Disadvantages:



      1、Poor Oxygenated-Solvent Resistance

      2、Poor Ozone Resistance

      Part NO. Actual Size Quantity
      AS 568 AS 568 CS/mm Pcs
      A 006 2.90 1.78 20
      A 007 3.68 1.78 20
      A 008 4.47 1.78 20
      A 009 5.28 1.78 20
      A 010 6.07 1.78 20
      A 011 7.65 1.78 20
      A 112 9.25 1.78 20
      A 110 9.19 2.62 13
      A 111 10.77 2.62 13
      A 112 12.37 2.62 13
      A 113 13.94 2.62 13
      A 114 15.54 2.62 13
      A 115 17.12 2.62 13
      A 116 18.72 2.62 13
      A 210 18.64 3.53 10
      A 211 20.22 3.53 10
      A 212 21.82 3.53 10
      A 213 23.39 3.53 10
      A 214 24.99 3.53 10
      A 215 24.99 3.53 10
      A 216 28.17 3.53 10
      A 217 29.74 3.53 10
      A 218 31.34 3.53 10
      A 219 32.92 3.53 10
      A 219 34.52 3.53 10
      A 221 36.09 3.53 10
      A 222 37.69 3.53 10
      A 325 37.47 5.33 7
      A 326 40.64 5.33 7
      A 327 43.82 5.33 7
      Application
      NBR o-rings is currently the most widely used, the lowest cost of rubber seals. Used for fuel spray nozzle, electric power tool, automotive air conditioning,home appliances, excavator , machines, pneumatic motor, oil hydraulic pump, air pump and so on. It also can be used as marks or beckets.
